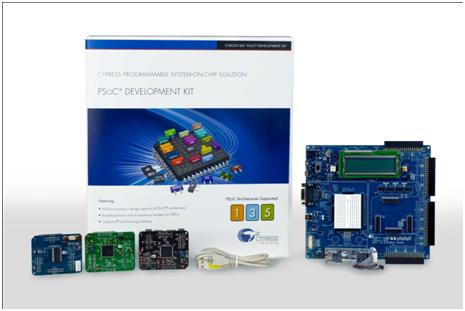

The PSoC DVK gives you a practical understanding of PSoC technology. In addition, the kit includes several example projects with step-by-step instructions to enable you to easily get started developing PSoC solutions. This kit includes PSoC 1, PSoC 3, and PSoC 5LP Family Processor Modules.

Kit Upgrade: Now it’s time to make the upgrade to PSoC® 5LP Processor Module and take advantage of all that PSoC has to offer.

These upgrades are FREE to our valued customers. Log on to http://www.cypress.com/go/psockitupgrade to know more details. Cypress appreciates your business and continued loyalty.

Kit Contents:

• PSoC Development Board
• PSoC 1 CY8C28 Family Processor Module
• PSoC 3 CY8C38 Family Processor Module
• PSoC 5 CY8C58LP Family Processor Module
• MiniProg3 Program/Debug Device
• Program/Debug Ribbon Cable
• USB Cable
• 12V AC Power Adapter
• Quick Start Guide
• Kit CDs, which includes: PSoC Creator™, PSoC Designer™, PSoC Programmer, Projects, and Documentation

For PSoC training, please visit http://www.cypress.com/go/training.

Software Title	Description	Link
PSoC Creator	This kit requires PSoC Creator for development
PSoC Designer	This kit requires PSoC Designer for development
PSoC Programmer	This kit requires PSoC Programmer for programming

File Title	Language	File Size	Last Updated
CY8CKIT-001 Quick Start Guide (Japanese).pdf	Japanese	771 KB	01/04/2011
CY8CKIT-001 Quick Start Guide (Chinese).pdf	Chinese	832 KB	01/04/2011
CY8CKIT-001 Quick Start Guide (Korean).pdf	Korean	5 MB	01/04/2011
PSoC_1_SelfTest.hex	English	35 KB	08/10/2011
PSoC_3_SelfTest.hex	English	159 KB	08/10/2011
PSoC_5_SelfTest.hex	English	635 KB	08/10/2011
CY8CKIT-001_Release_Notes.pdf	English	119 KB	01/31/2013
CY8CKIT-001_PSoC_Development_Kit_Guide.pdf	English	11 MB	12/27/2012
CY8CKIT-001 PSoC 3 / PSoC 5 ISO (Create CD)	English	1155 MB	12/14/2012
CY8CKIT-001 PSoC 3 Kit Only (Kit Design Files, Documentation, Examples)	English	21 MB	12/14/2012
CY8CKIT-001 PSoC 3 Kit Setup (Kit Design Files, Creator, Programmer, Documentation, Examples)	English	576 MB	12/14/2012
CY8CKIT-001_Quick_Start_Guide.pdf	English	592 KB	12/09/2012
CY8CKIT-001 Board Design Files (Schematic, Layout, Gerber, BOM)	English	3 MB	08/14/2012
