Bridges - West Bridge® Controllers - Bridges - USB Controllers - Antioch - Astoria - West Bridge

Bridges - West Bridge® Controllers

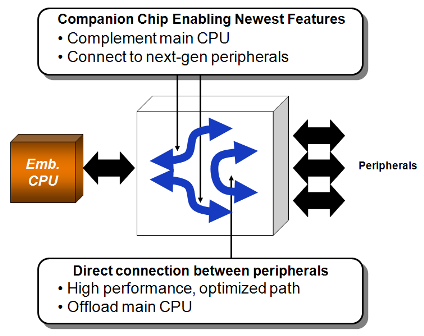

The West Bridge® peripheral controller offers a revolutionary architectural enhancement in embedded applications. Utilizing Cypress's unique SLIM" architecture, West Bridge enables: > Direct connection between peripherals > Offloading of the main processor > Support for next gen peripherals > Multi-tasking as the processor is offloaded Following on the success of West Bridge A-Generation devices, Cypress has launched a series of new West Bridge B-Generation solutions: Benicia and Bay. West Bridge Benicia™ is the industry’s first USB 3.0 SuperSpeed solution, especially built to improve the performance of mobile handhelds. West Bridge Bay™ provides support for USB 2.0 and the latest mass storage devices such as SD 3.0 (SDXC with UHS-I) and e-MMC4.4x. Both West Bridge Benicia and Bay are currently sampling. Please contact Cypress sales for additional information. Click below to learn more

WB Vision SLIM Technology Turbo-MTP

Bridges - West Bridge® Controllers Categories:

Select device parameters to narrow your part search:

Clock Input Frequency (MHz)	Interfaces Supported	Min. Operating Voltage (V)	Max. Operating Voltage (V)	Package	Min. Operating Temp. (°C)	Max. Operating Temp. (°C)	Automotive Qualified

Tip: To select multiple values in a box, hold down the CTRL key first, then use your mouse to choose desired values, and then release the control key.

15 Results - Show All Results 1 to 15 of 15 Results

Part Number	Status	Clock Input Frequency (MHz)	Interfaces Supported	Min. Operating Voltage (V)	Max. Operating Voltage (V)	Package	Min. Operating Temp. (°C)	Max. Operating Temp. (°C)	Automotive Qualified
CYWB0120AB-BVXI Datasheet \| US$8.50	In Production	19.2, 24, 26, 48	HS-USB, SD/MMC+	1.8	3.3	BGA	-40	85	N
CYWB0120AB-BVXIT Datasheet	In Production	19.2, 24, 26, 48	HS-USB, SD/MMC+	1.8	3.3	BGA	-40	85	N
CYWB0124AB-BVXI Datasheet \| US$20.26	In Production	19.2, 24, 26, 48	HS-USB, SD/MMC+, SLC NAND	1.8	3.3	BGA	-40	85	N
CYWB0124AB-BVXIT Datasheet	In Production	19.2, 24, 26, 48	HS-USB, SD/MMC+, SLC NAND	1.8	3.3	BGA	-40	85	N
CYWB0124ABX-FDXIT Datasheet	In Production	19.2, 24, 26, 48	HS-USB, SD/MMC+, SLC NAND	1.8	3.3	WLCSP	-40	85	N
CYWB0125ABX-FDXIT Datasheet	In Production	19.2, 24, 26, 48	HS-USB, SLC NAND, Dual-SD/MMC+	1.8	3.3	WLCSP	-40	85	N
CYWB0163BB-FBXIES Contact Sales	Contact Sales	19.2, 26, 38.4, 52	SD 2.0, SD 3.0, eMMC 4.3, eMMC 4.4, I2C, I2S, UART, SPI, SDIO, HS-USB, HS/FS/LS OTG	1.15	3.6	WLCSP	-40	85	N
CYWB0163BB-FNXIES Contact Sales	Contact Sales	19.2, 26, 38.4, 52	SD 2.0, SD 3.0, eMMC 4.3, eMMC 4.4, I2C, I2S, UART, SPI, SDIO, HS-USB, HS/FS/LS OTG	1.15	3.6	WLCSP	-40	85	N
CYWB0224ABS-BVXI Datasheet \| US$12.16	In Production	19.2, 24, 26, 48	HS-USB, SLC NAND, Dual-SD/MMC+	1.8	3.3	BGA	-40	85	N
CYWB0224ABS-BVXIT Datasheet	In Production	19.2, 24, 26, 48	HS-USB, SLC NAND, Dual-SD/MMC+	1.8	3.3	BGA	-40	85	N
CYWB0224ABSX-FDXIT Datasheet	In Production	19.2, 26	HS-USB, SLC NAND, Dual-SD/MMC+	1.8	3.3	WLCSP	-40	85	N
CYWB0226ABS-BVXI Datasheet \| US$12.16	In Production	19.2, 24, 26, 48	HS-USB, SLC NAND, Dual-SD/MMC+	1.8	3.3	BGA	-40	85	N
CYWB0226ABS-BVXIT Datasheet	In Production	19.2, 24, 26, 48	HS-USB, SLC NAND, Dual-SD/MMC+	1.8	3.3	BGA	-40	85	N
CYWB0226ABSX-FDXIT Datasheet	In Production	19.2, 26	HS-USB, SLC NAND, Dual-SD/MMC+	1.8	3.3	WLCSP	-40	85	N
CYWB0320ABX-FDXIT Contact Sales	In Production	26	HS-USB, SD/MMC+	1.8	3.3	WLCSP	-40	85	N

15 Results - Show All Results 1 to 15 of 15 Results

Prices are shown in United States dollars and are for budgetary use only.

Don't see what you are looking for? Please contact the Cypress Sales team for further assistance on product offerings.
