PLDs (Programmable Logic)

Looking for part data? Try our new Parametric Product Selector

Browse Products

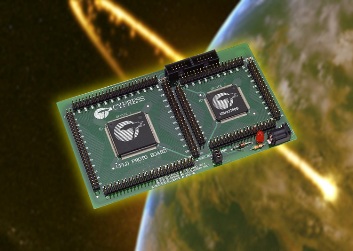

Ultra37000 CPLD Overview

Programmable logic devices (PLDs) allow designers to make key system changes late in the development cycle, thus providing flexibility and fast time-to-market. The Ultra37000 family is designed to bring the flexibility, ease of use, and performance of the 22V10 to high-density CPLDs

> From 32 to 256 macrocells
> In-System Reprogrammable™ (ISR™) feature offers high density and high performance
> True 3.3V and 5V versions
> Full JTAG (IEEE 1149.1) compatibility
> PCI compliant

	Related Documentation
	Datasheets (1) Models (2) Product Change Notice (PCN) (4) Download all Documentation

	Related Resources
	IP Elements (1) Knowledge Base Articles (541) Qualification Reports (4) Software and Drivers (1) Technical Articles (1)

Parametric Product Selector

Select more device parameters by clicking the checkboxes below:

Max. Operating Temp. (°C) (62)

PB Free (62)

RoHS Compliant (62)

Select device parameters to narrow your part search:

No. of Macrocells	Supply Voltage (V)	Frequency (MHz)	I/O Voltage (V)	Prop Delay (ns)	Min. Operating Voltage (V)	Max. Operating Voltage (V)	Package	Automotive Qualified	Min. Operating Temp. (°C)

Tip: To select multiple values in a box, hold down the CTRL key first, then use your mouse to choose desired values, and then release the control key.

62 Results - Show All Results 1 to 20 of 62 Results | Next >

Part Number	Status	No. of Macrocells	Supply Voltage (V)	Frequency (MHz)	I/O Voltage (V)	Prop Delay (ns)	Min. Operating Voltage (V)	Max. Operating Voltage (V)	Package	Automotive Qualified	Min. Operating Temp. (°C)
CY37032P44-125AXC Datasheet	In Production	32	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	0
CY37032P44-125AXCT Datasheet	In Production	32	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	0
CY37032P44-125JXC Datasheet	In Production	32	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	0
CY37032P44-154AXI Datasheet	In Production	32	5.0	154	3.3/5.0	6.0	3.00	3.60	TQFP	N	-40
CY37032P44-154AXIT Datasheet	In Production	32	5.0	154	3.3/5.0	6.0	3.00	3.60	TQFP	N	-40
CY37032VP44-100AXC Datasheet	In Production	32	3.3	100	3.3	8.5	3.00	3.60	TQFP	N	0
CY37032VP44-100AXCT Datasheet	In Production	32	3.3	100	3.3	8.5	3.00	3.60	TQFP	N	0
CY37032VP44-143AXC Datasheet	In Production	32	3.3	143	3.3	8.5	3.00	3.60	TQFP	N	0
CY37032VP44-143AXCT Datasheet	In Production	32	3.3	143	3.3	8.5	3.00	3.60	TQFP	N	0
CY37064P100-125AXC Datasheet	In Production	64	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	0
CY37064P100-125AXI Datasheet	In Production	64	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	-40
CY37064P100-125AXIT Datasheet	In Production	64	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	-40
CY37064P100-200AXC Datasheet	Not Recommended for New Designs	64	5.0	200	3.3/5.0	6.0	3.00	3.60	TQFP	N	0
CY37064P100-200AXCT Datasheet	Not Recommended for New Designs	64	5.0	200	3.3/5.0	6.0	3.00	3.60	TQFP	N	0
CY37064P44-125AXC Datasheet	In Production	64	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	0
CY37064P44-125AXCT Datasheet	In Production	64	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	0
CY37064P44-125AXI Datasheet	In Production	64	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	-40
CY37064P44-125AXIT Datasheet	In Production	64	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	-40
CY37064P44-125JXC Datasheet	In Production	64	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	0
CY37064P44-125JXCT Datasheet	In Production	64	5.0	125	3.3/5.0	6.0	3.00	3.60	TQFP	N	0

62 Results - Show All Results 1 to 20 of 62 Results | Next >

Don't see what you are looking for? Please contact the Cypress Sales team for further assistance on product offerings.
